What is High Alumina Lining Bricks

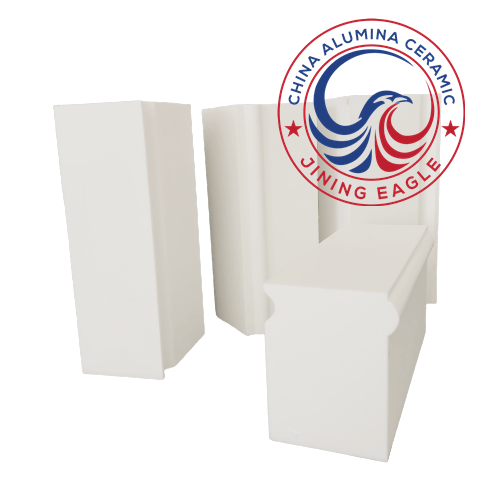

High Alumina Bricks are classified into three categories according to their shape: rectangular bricks, trapezoidal bricks, and irregular bricks. All of them are hard, dense, neat, and durable. Alumina grinding bricks have high mechanical strength and superb anti-corrosion properties. High alumina lining bricks are also called 92 ceramic lining bricks, ball mill high alumina lining, microcrystalline wear-resistant high alumina ceramic lining bricks, molded by two-way hydraulic press, and sintered in the high-temperature natural gas kiln.
alumina ceramic lining bricks
high Alumina ceramic Bricks applications
Utilized in industries such as pharmaceutics, cement, paint/pigments, chemicals, and coating, ceramic alumina lining bricks have a positive impact on the grinding process and production costs, and they’re good for the environment as they lessen the usage of power and pollution.
The main component of high alumina grinding bricks is Al2O3, which is a kind of refractory material. When the Al2O3 content of high alumina brick (Ceramic Alumina lining bricks) exceeds 90%, it is called corundum bricks.
Our firm produces Ceramic Alumina bricks of any category on demand, whether you want to use them as the wear-resistant inner lining of pipes and ball mills in the ceramic industry (one of the best options for ball mill lining), or to improve grinding efficiency in any other industry (medicine, coating, paint, cement, etc.).
high Alumina grinding Bricks advaNtages
With alumina ceramic lining bricks, grinding ball mills can be safe and sound for a long time —no routine maintenance required.
The chemical composition (92% alumina) and physical properties of the high ceramic Alumina bricks allow them to resist the impact on pipe walls and resist wear 266 times more effectively than manganese steel, without contaminating the ground material. Alumina grinding bricks are also unaffected by acid and alkali.
Wear-resistant ceramic alumina lining bricks is a product used for the wear-resistant lining of ball mills, which is widely used in ceramics, cement, paint, pigment, chemical, pharmaceutical, coating and other industries.
- High Mechanical Strength
- excellent abrasion
- Excellent impact resistance
- Corrosion and chemical resistance
- Lightweight
high Alumina ceramic Lining Bricks specification
Alumina lining bricks products have the characteristics of high hardness, high density, low abrasion, good regularity, and corrosion resistance. Alumina bricks are used for wear-resistant linings of ball mills. Wear resistant Alumina ceramic lining bricks can increase the service life of ball mill linings. Alumina grinding bricks can increase grinding space, grinding efficiency, raising output by 30%-50% and reduce grinding time.
| Item | AK-92 | AK-95 |
| Al2O3 (%) | ≧92 | ≧95 |
| BulK DENSITY (g/cm3) | ≧3.60 | ≧3.65 |
| Hardness (mohs) | 9 | 9 |
| Wear Loss (%) | ≦0.01 | ≦0.01 |
| Color | White | White |
| Rectangle Bricks | |||||||
| H (mm) | 40 | 50 | 60 | 70 | 80 | 90 | 120 |
| W(mm) | 50 | 50 | 60 | 50 | 50 | 90 | 50 |
| L(mm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Half Rectangle Bricks | |||||||
| H (mm) | 40 | 50 | 60 | 70 | 80 | 90 | 120 |
| W(mm) | 50 | 50 | 60 | 50 | 50 | 90 | 50 |
| L(mm) | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Trapezoid Bricks | |||||||
| H (mm) | 40 | 50 | 60 | 70 | 80 | 90 | 120 |
| W(mm) | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 |
| L(mm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Half Trapezoid Bricks | |||||||
| H (mm) | 40 | 50 | 60 | 70 | 80 | 90 | 120 |
| W(mm) | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 |
| L(mm) | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Flake Bricks | |||||||
| H (mm) | 40 | 50 | 60 | 70 | 80 | 90 | 120 |
| W(mm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| L(mm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Get High alumina bricks price, please contact us!
Questions and answers about Alumina grinding bricks application solutions
Welcome to inquire and purchase our from 92% to 95% ceramic grinding bricks. High-quality alumina grinding bricks are the best companion for ball mills, which can save you 15%-30% of the cost.
Are high alumina ceramic lining bricks cost-effective and environmentally sustainable?
Despite higher upfront costs, they offer long-term savings by reducing downtime and maintenance. They promote sustainability by minimizing waste and energy use associated with frequent replacements.
What sizes and specifications are available for high alumina ceramic lining bricks?
High alumina ceramic lining bricks are available in various sizes and shapes, ranging from standard bricks to custom-designed shapes. They are engineered with specific compositions and surface textures tailored to withstand specific industrial wear and operational requirements.
Which industries commonly use high alumina ceramic lining bricks?
High alumina ceramic lining bricks are commonly used in cement kilns, mining chutes, steel mills, and other heavy-duty applications. They serve as protective linings in equipment subjected to extreme wear and impact, ensuring reliable performance and operational efficiency.
What advantages do high alumina ceramic lining bricks offer over other materials?
High alumina ceramic lining bricks offer superior resistance to abrasion, corrosion, and high temperatures compared to metals, plastics, and traditional refractory bricks. They are crucial for extending equipment lifespan and reducing maintenance costs in severe operating conditions.
What are high alumina ceramic lining bricks used for and how are they made?
High alumina ceramic lining bricks are used for lining high-wear areas in industries such as cement, mining, and steel production. They are manufactured by compacting and firing high-purity alumina or alumina-silica materials at temperatures above 1500°C to achieve dense bricks with excellent hardness and wear resistance (typically 9 Mohs).
